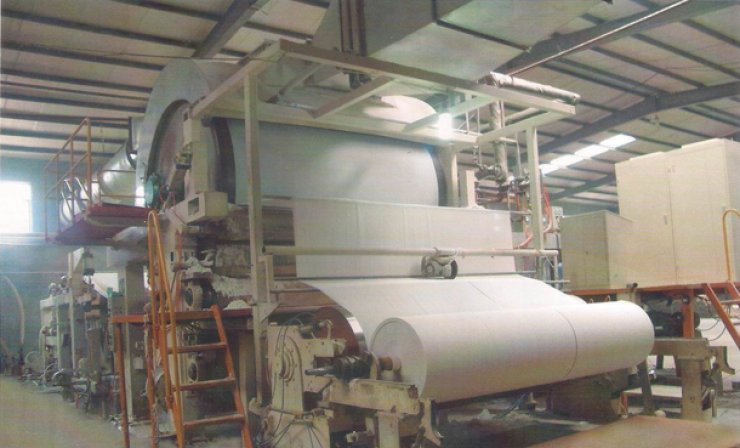

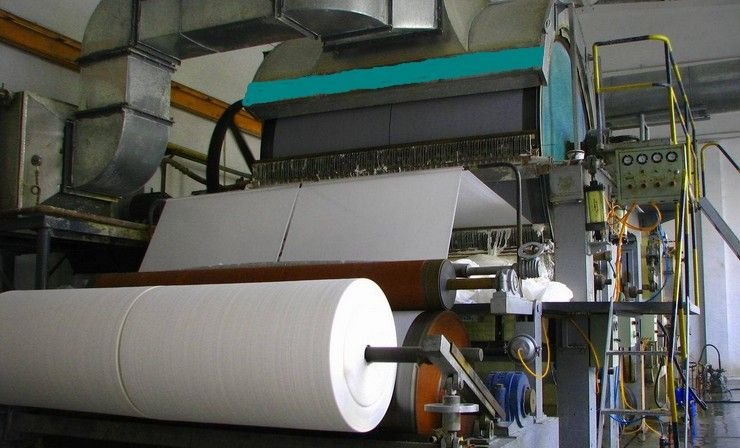

Product Name: High Speed Toilet Paper Machine

Specifications: 1092-3500

Product Manual:

The high-speed paper machine features a built-in pressure-type sizing system, a square cone pipe distributor, and a step

diffuser to ensure paper uniformity. It uses a curved plate design, allowing the cutting angle between the curved plate and

the cage to adjust according to various paper types and technical requirements. The cage is constructed from stainless

steel to ensure maximum strength and permeability. The machine is equipped with a pneumatic pulse automatic carpet

blanket controller, an electric automatic tensioner, and a pneumatic automatic roller pressure system to ensure balanced

pressure. A pneumatic compound scraper on the roller guarantees uniform wrinkling of the paper and extends the lifespan

of the dryer cylinder  surface.    The drying section utilizes a breathing heat-cycle hood to ensure consistent drying of

the paper at varying speeds. this model achieves papermaking speed of up to 130-200m/mins.

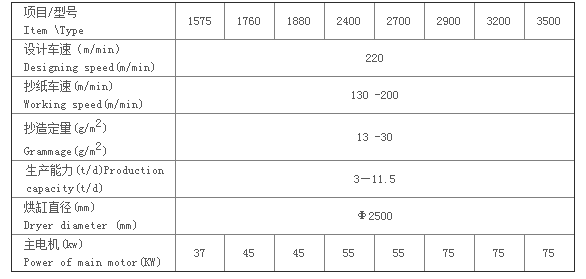

 技术参数：Technical Data
